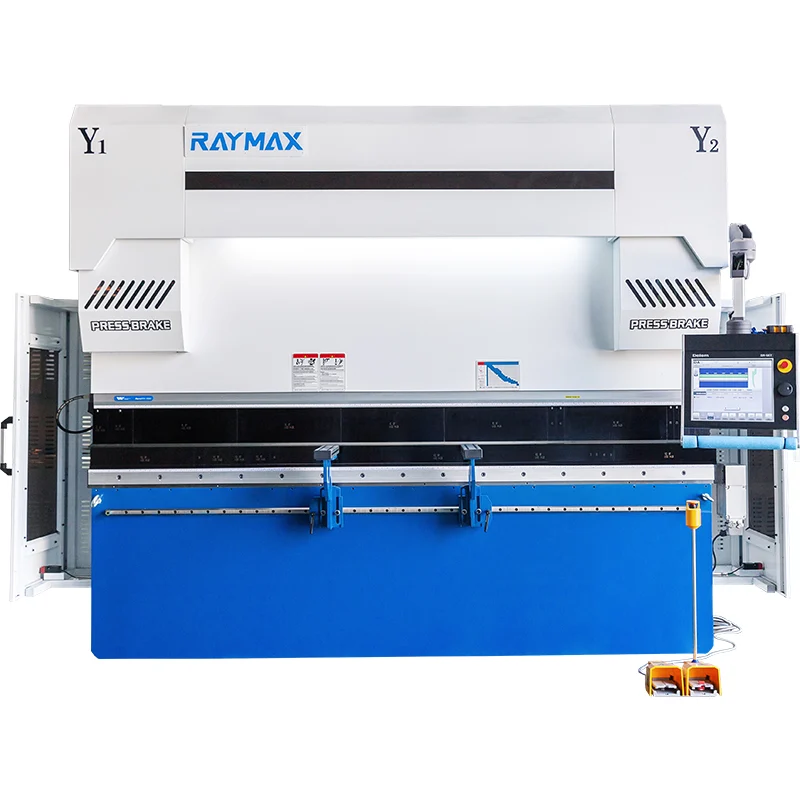

How CNC Press Brake Automation Reduces Setup Time

In the fast-paced and highly competitive environment of modern sheet metal fabrication, reducing non-cutting or non-bending downtime is absolutely essential for maintaining profitable shop floor productivity. At RAYMAX, we understand through years of industry experience that traditional metal bending operations often suffer from lengthy, manual calibration phases, frustrating trial-and-error adjustments, and heavily operator-dependent setup procedures. When modern fabricators upgrade to an advanced cnc press brake, these operational bottlenecks are dramatically minimized through the power of intelligent digital automation. By integrating programmable backgauges, automated crowning systems, and intuitive numerical controllers, modern machinery completely transforms how production lines handle rapid job transitions. Understanding these technological efficiencies reveals why automation is no longer an optional luxury, but an absolute necessity for high-output manufacturing facilities.

Eliminating Manual Calculation Through Intelligent Numerical Controllers

The most significant time-consuming element in traditional press brake operation is manually calculating bend allowances, material springback percentages, and precise backgauge positioning coordinates. Modern automated systems solve this persistent challenge by utilizing powerful CNC graphical controllers—such as the Delem DA-53T or DA-66T touchscreen units seamlessly integrated into our comprehensive machine lines. These sophisticated controllers allow machine operators to input raw material thickness, exact tensile strength values, and target bending angles directly into a user-friendly visual interface. The internal software instantly computes the optimal bending sequence, tool parameters, and pressure requirements. By completely removing manual mathematical calculations and eliminating tedious trial bends on valuable scrap material, operators can transition from one production batch to the next in a fraction of the time, boosting overall shop productivity significantly.

Precision Backgauge Positioning and Multi-Axis Operational Speed

Accurate and repeatable positioning of the backgauge is critical for achieving consistent flange widths across every component, yet manual adjustments are notoriously slow and highly prone to human measuring errors. A modern cnc press brake utilizes high-speed servo-driven multi-axis backgauges that move swiftly and position themselves with microscopic precision—often within fractions of a millimeter. When a new job is loaded directly from the controller's internal memory library, the various axes automatically adjust to the required depth, height, and rotation without requiring manual wrenches or physical measuring tapes. This rapid, automated positioning reduces manual setup intervention to mere seconds, ensuring that every subsequent component matches the precise engineering specifications required for high-tolerance industrial applications.

Automated Crowning Systems for Instant Deflection Compensation

During heavy-duty metal bending operations, the immense tonnage exerted across the upper and lower beams naturally causes slight structural deflection, which can lead to uneven angles along the entire length of the workpiece. Traditionally, compensating for this unavoidable deflection required cumbersome manual shimming of the lower die, a process that could consume significant setup time and heavily frustrate operators. Advanced automated systems utilize motorized mechanical crowning or hydraulic wedge-based crowning units directly managed by the CNC controller. The machine automatically calculates the required compensation based on the part length, material thickness, and tensile characteristics, adjusting the lower beam instantly. This eliminates the need for manual shimming trials, ensuring straight, uniform bends on the very first try.

Streamlining Production Scheduling and Maximizing Overall Efficiency

Ultimately, the integration of advanced automation in modern metal forming equipment fundamentally changes the economics of short-run and high-mix manufacturing environments. By drastically cutting down the preparation and calibration phase, an automated cnc press brake allows fabricators to accept smaller batch sizes profitably, effectively reducing warehouse inventory costs for spare parts and finished goods. At RAYMAX, we emphasize that combining robust structural frame rigidity—verified through rigorous engineering analysis—with smart automation delivers unmatched operational uptime. This seamless synergy between mechanical strength and digital intelligence ensures your facility achieves maximum throughput, minimal operator fatigue, and consistent, professional-grade results on every single production shift.
