RX-800S-BK Deburring and Sanding Machine

Description

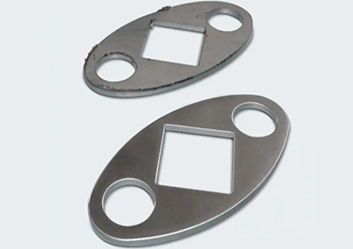

RX-800S series is an economical sanding machine with low investment and high return. Raymax magnetic suction deburring machine firmly absorbs the workpiece on the workbench with built-in strong magnetic device, and the driving device drives the abrasive belt to rotate at high speed to cut and polish the workpiece burrs through abrasive belt; Part of the equipment is also provided with a feeding device to realize automatic workpiece grinding. It is applicable to scratch repair, scale removal and deburring of various metal plates.

Introduction

Ⅰ.Features

The magnetic deburring machine uses dry processing, with low production and maintenance costs.

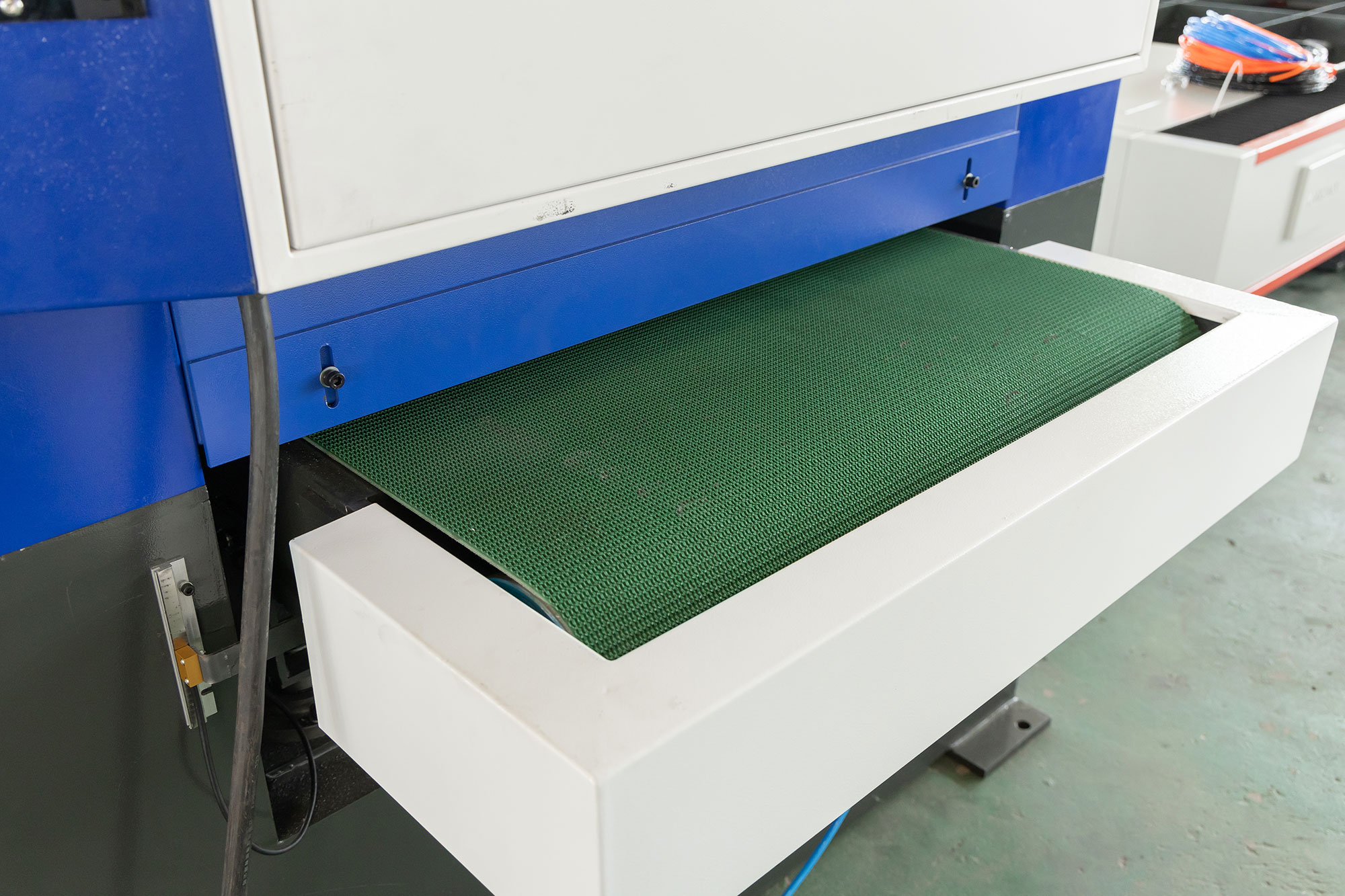

Deburring machine adopts through-feed processing, enabling the deburring machine to operate stably and efficiently.
Deburring machine has four-column synchronous lifting, ensuring consistent ground surface texture from the deburring machine.
It is equipped with a powerful vacuum cleaner, helping the deburring machine prevent dust pollution.

Ⅱ. Parameters

Processing width	≤800mm	Dust suction fan air volume	4000m³H
Minimum processing part	≥280mm	Total power	10.97kw
Processing thickness	1~80mm	Workbench height	885mm
Feeding speed	1m~8m/min	Overall dimensions	2060×1480×1930mm
Spindle speed	1440r/min	Weight	1.5T
Grinding consumables	Abrasive belt	Sanding belt size	800mm/1910mm
Fixed method	Pressure roller/magnetic suction	Workstation	Single/Double belt

Ⅲ. Machine Configuration

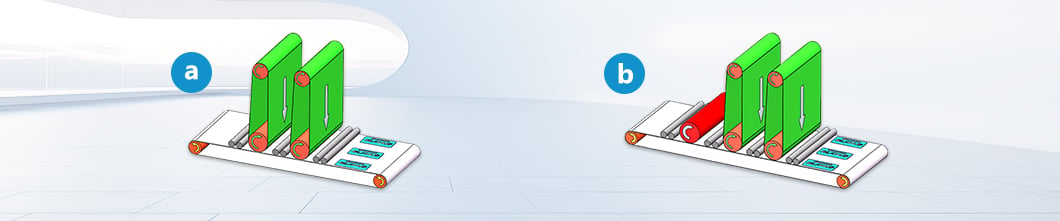

Structure

Sanding belt+Polishing Roller single or multiple combined structures

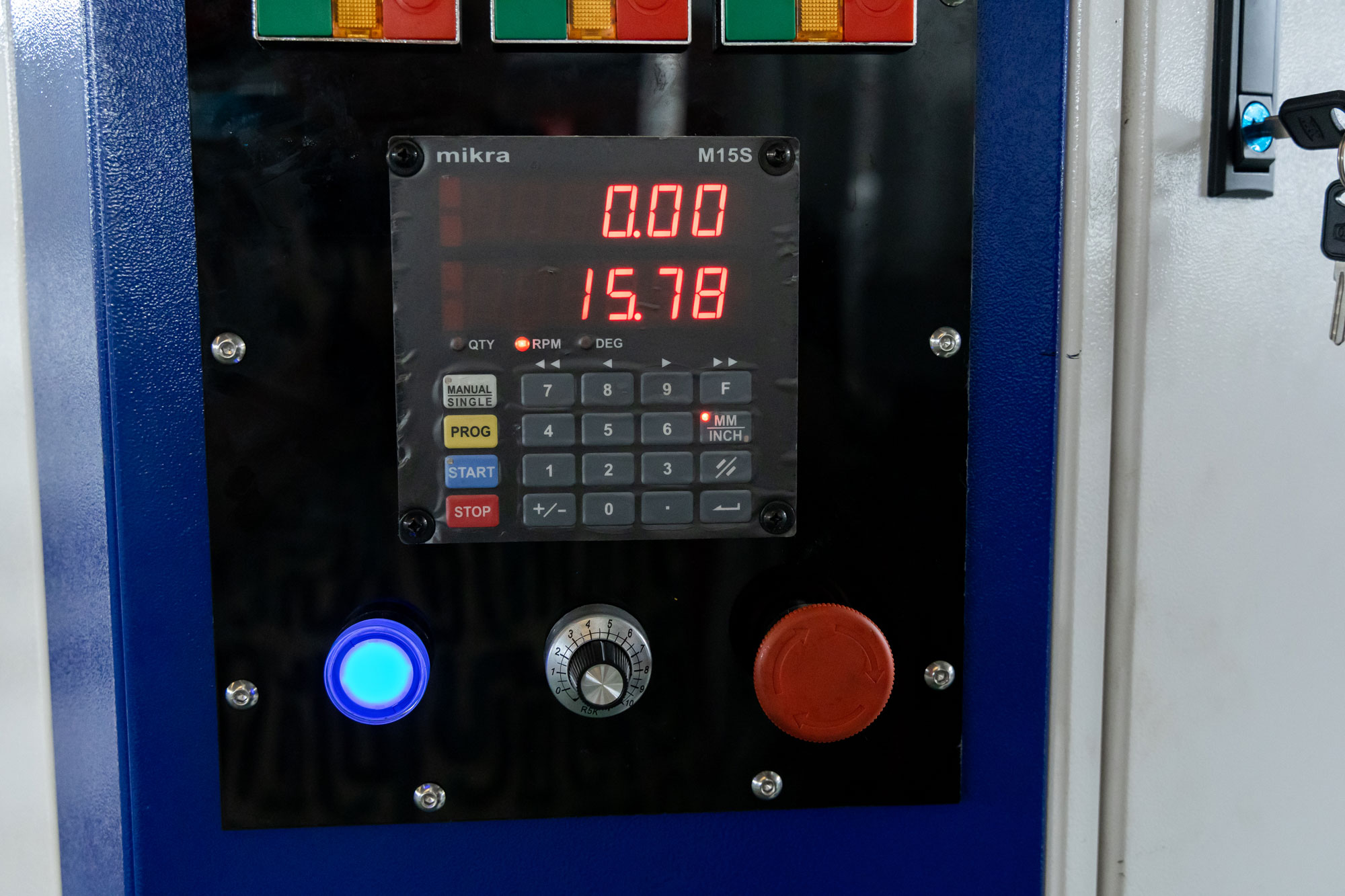

Control Panel

Complete machine numerical control PLC touch screen adjusting processing parameters

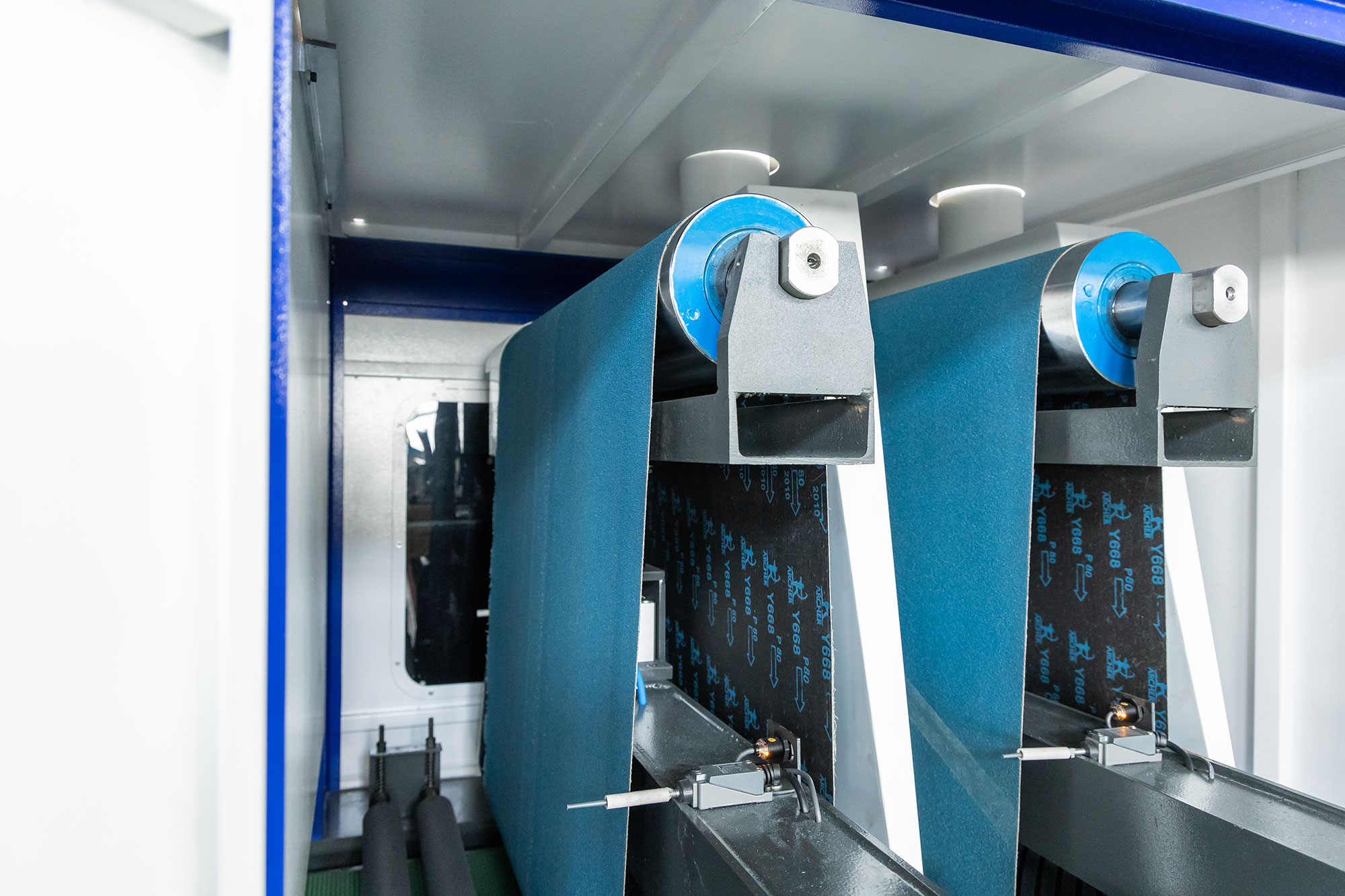

Abrasive Belt

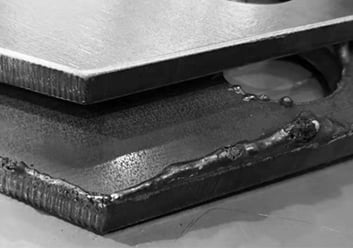

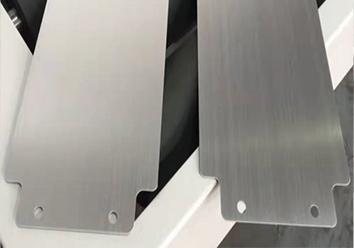

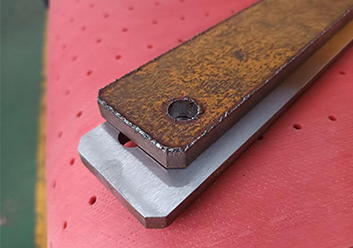

The abrasive belt is capable of slag/dross removal, vertical burr grinding, and straight grain finishing—this also includes the removal of certain mill scale.
