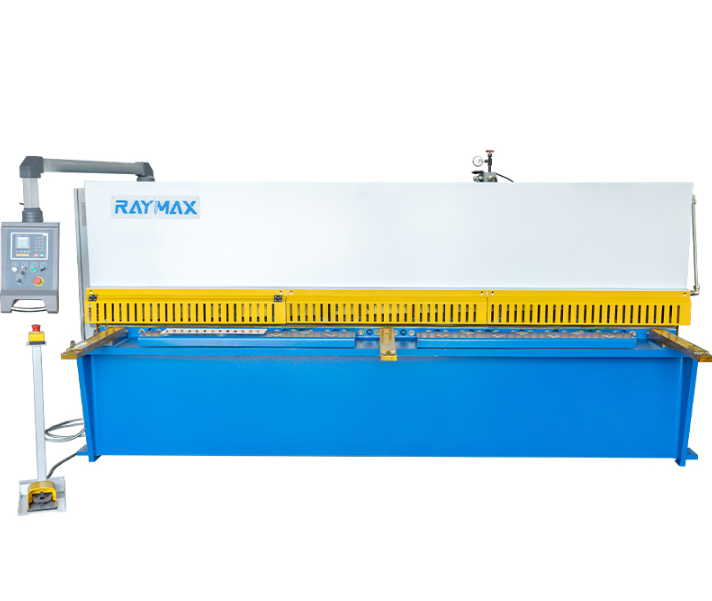

Precision Engineering: How CNC Shearing Machine Achieves Sub-Millimeter Repeatability

Closed-Loop Control and Servo-Driven Positioning (±0.1–1 mm Accuracy)

CNC shearing machines achieve exceptional accuracy through servo-driven positioning systems integrated with closed-loop feedback control. This technology continuously monitors blade position and cutting force, automatically compensating for deviations in real time. The result is consistent cut lengths within ±0.1 mm to 1 mm tolerances across thousands of cycles. Unlike manual shearing—where operator fatigue and technique introduce variability—these automated systems maintain positional accuracy regardless of production duration. This precision reduces material waste and eliminates secondary trimming operations in sheet metal processing.

Case Study: Automotive Stamping Supplier Reduced Dimensional Rejects by 92% After CNC Shearing Machine Deployment

A major automotive stamping supplier faced chronic quality issues with manual shear operations, where dimensional inconsistencies caused downstream assembly problems. After implementing CNC shearing equipment with encoder-verified positioning, they achieved a 92% reduction in dimensional rejects within three production cycles. The programmable back gauge system maintained consistent sheet positioning across diverse part geometries, ensuring uniform blanks for high-volume stamping dies. This improvement reduced annual rework costs by $740k while increasing press utilization by eliminating misfeed-related stoppages.

Operator-Independent Automation: Eliminating Human Variability Across Shifts and Batches

Human operators inherently introduce variability—fatigue, attention lapses, and inconsistent technique cause measurable differences across shifts and even within the same day. A CNC shearing machine removes these variables by automating the entire cutting sequence, delivering identical cuts regardless of who loads the material or when the batch runs.

Programmable Batch Logic Ensures Identical Cuts Every Cycle

Programmable batch logic stores every critical parameter—back gauge position, blade clearance, stroke count, and feed speed—for each job. Once programmed, the machine executes the identical sequence for hundreds or thousands of cycles without deviation. This eliminates risks like misreading a tape measure or adjusting settings mid-batch. Every sheet is cut to the exact same dimensions, part after part and shift after shift. Scrap rates drop to near zero, and first-pass yield becomes predictable. For high-mix production, operators simply recall a stored job number—the machine resets automatically. No measurement, no guesswork, no drift. Standardization transforms batch consistency from a challenge into a built-in capability.

Digital Back Gauge Systems: Enabling Zero-Drift Setup Consistency for High-Mix Production

Encoder-Verified Positioning with <0.05 mm Resolution

Precision positioning defines modern CNC shearing performance—especially with encoder-verified digital back gauge systems. These systems achieve sub-0.05 mm resolution using high-resolution linear encoders that continuously monitor axis movement. Real-time feedback corrects for positional drift caused by thermal expansion or mechanical wear—common failure points in traditional setups. During high-mix production, such systems maintain tight tolerances across hundreds of tool changes without manual recalibration. Robust mechanical components—including recirculating ball bearings and rack-and-pinion drives—complement encoder data, preventing cumulative errors over extended shifts. The result is near-perfect repeatability for complex nested cutting patterns, essential for aerospace and medical components. Operators benefit from simplified setup verification, reducing changeover times by up to 65% while ensuring first-part correctness.

Intelligent Blade Management: Sustaining Cut Uniformity Throughout Long Production Runs

Blade degradation is the primary cause of dimensional drift in high-volume shearing. Modern CNC shearing machines address this by embedding intelligence directly into the blade management cycle.

Predictive Wear Monitoring and Auto-Compensated Clearance Adjustment

Sensors track cutting force, vibration, and edge sharpness in real time to monitor blade condition. When wear reaches a predefined threshold, the control system automatically recalculates optimal blade clearance and repositions the upper blade bed within milliseconds. This closed-loop adjustment compensates for gradual dulling without operator intervention—maintaining cut consistency across tens of thousands of cycles. The result is typically a 15–25% reduction in scrap rates and a measurable extension of blade service life, as automatic compensation prevents the excessive force that accelerates wear. By removing manual guesswork around blade changes, production schedules remain uninterrupted, and every batch meets the same sub-millimeter tolerance. Predictive analytics also forecast replacement timing, enabling maintenance planning during non-production windows to maximize overall equipment effectiveness.
