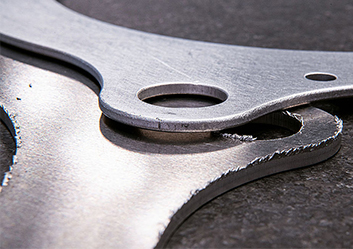

1. Through-Feed Processing: The deburring machine allows for a single-pass operation to complete both deburring and edge rounding, significantly increasing efficiency and simplifying the process flow.
2. Multiple Flexible Wire Brush Systems: Equipped with multiple flexible wire brush units, the deburring machine ensures uniform and precise deburring and edge rounding for consistent results.
3. Vacuum Conveyor Platform: The deburring machine features a vacuum conveyor platform that securely transports workpieces, handling a wide range of sizes, with a minimum workpiece size of 50x50mm.
4. Handling Coated Workpieces: This deburring machine can process workpieces with protective films intact, efficiently performing deburring and edge rounding without damaging the surface.

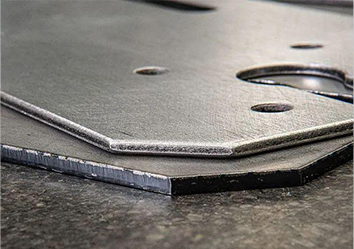

5. Rounding of Sharp Corners: The deburring machine can handle corners with radii no smaller than 1mm, meeting the needs of customers who require high-quality R-angle finishes.
6. Powerful Wide Abrasive Belt: The deburring machine is equipped with a powerful wide sanding belt that enhances the deburring and surface treatment quality, ensuring a smooth finish.

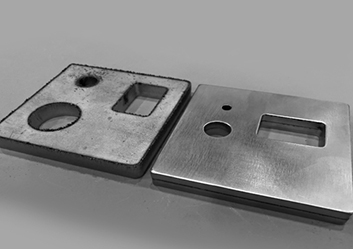

7. Minimal Surface Impact: Only the edges, corners, and hole areas of the workpieces are processed, with minimal impact on the surface, making it suitable for micro-forming or precision-machined parts.
8. Durable Consumables: The deburring machine uses durable consumables with long service life, reducing the frequency of replacements and improving overall cost efficiency.
| Parameter | Specification |
| Product Name | Metal Polishing Deburring Machine |

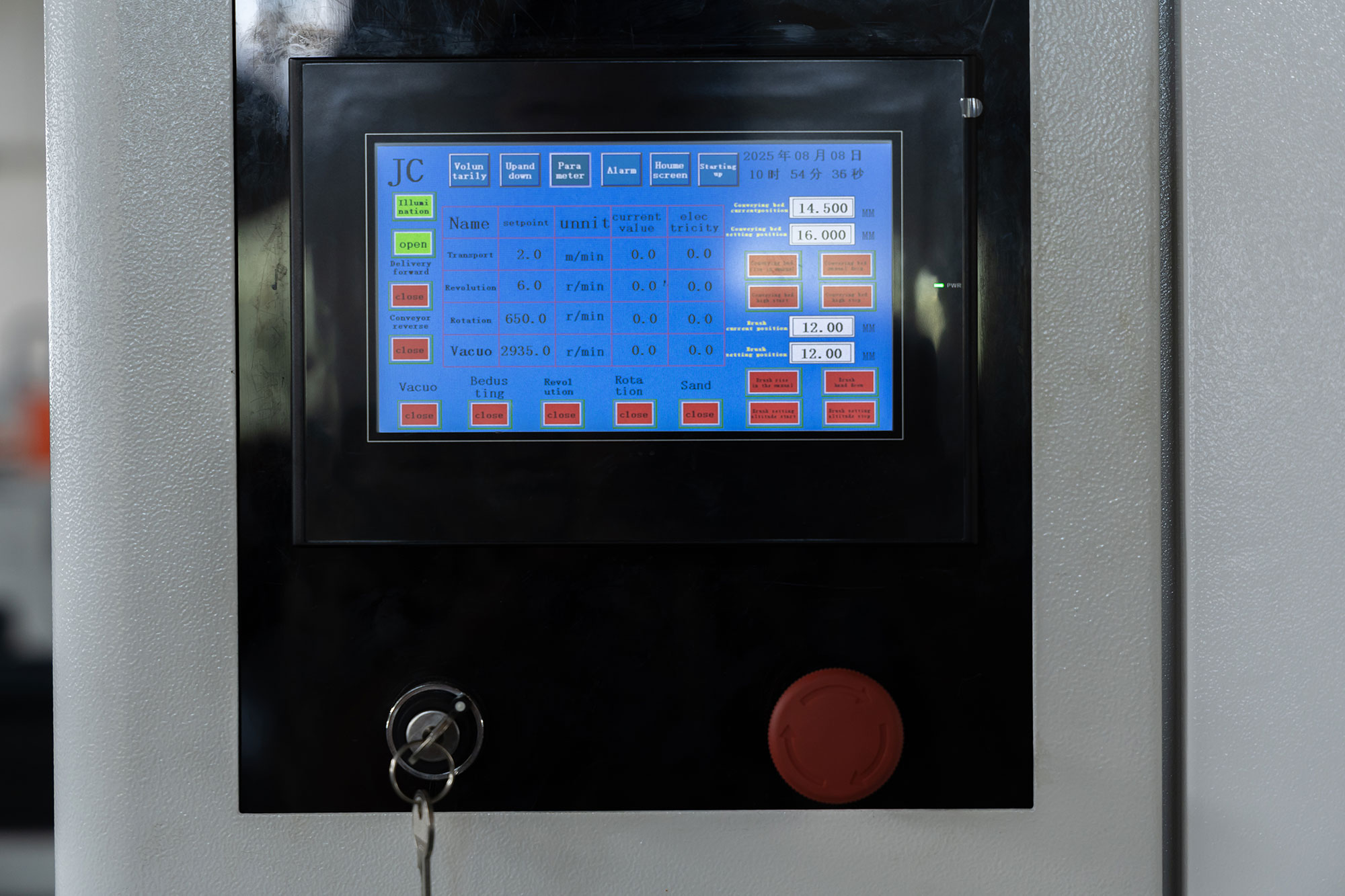

| Controller | PLC (Programmable Logic Controller) |
| Working Width | 800mm / 1000mm / 1300mm / 1600mm (optional) |
| Working Thickness | 0 - 100 mm |
| Working Table Structure | Vacuum / Magnetic (optional) |
| Sand Belt Mesh | #80, #120, #180, #240, #320 |

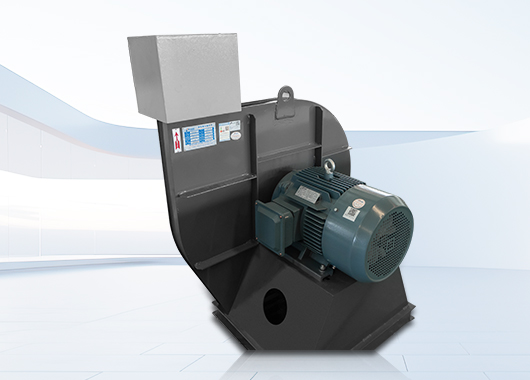

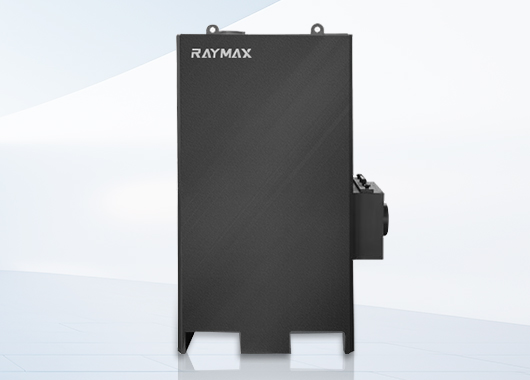

| Attached Equipment | Dry / Wet Dust Collector (optional) |

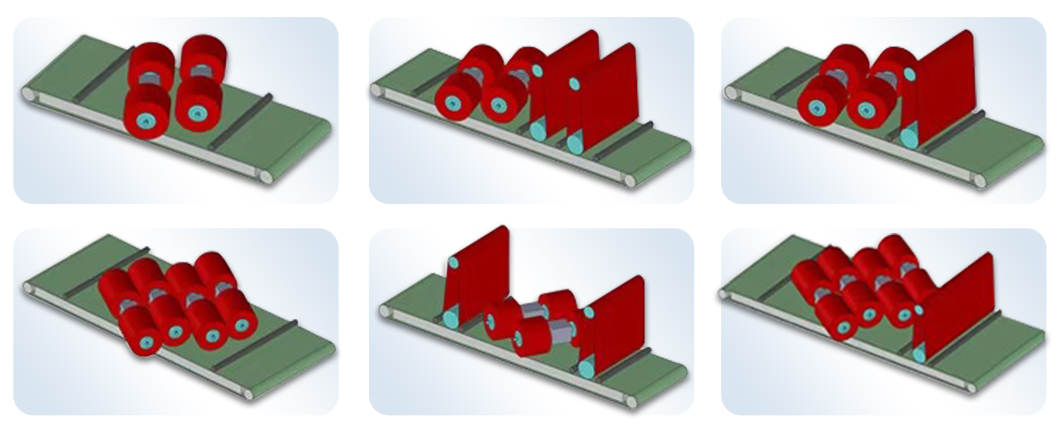

Multiple structural combinations
Wide sand belt+ universal roller brush single or multiple combined structures
Four or six or eight sets of roller brushes, adjacent to each other forming positive and negative rotation directions, polishing more perfectly.
Available Model
4 Rotary brushes For 600mm, 800mm width
6 Rotary brushes For 1000mm, 1300mm width
8 Rotary brushes For 1300mm,1400mm width
» Automatic abrasive compensation
» Process parameter memory
» Intelligent sensing protection
» Reminder for abrasive replacement

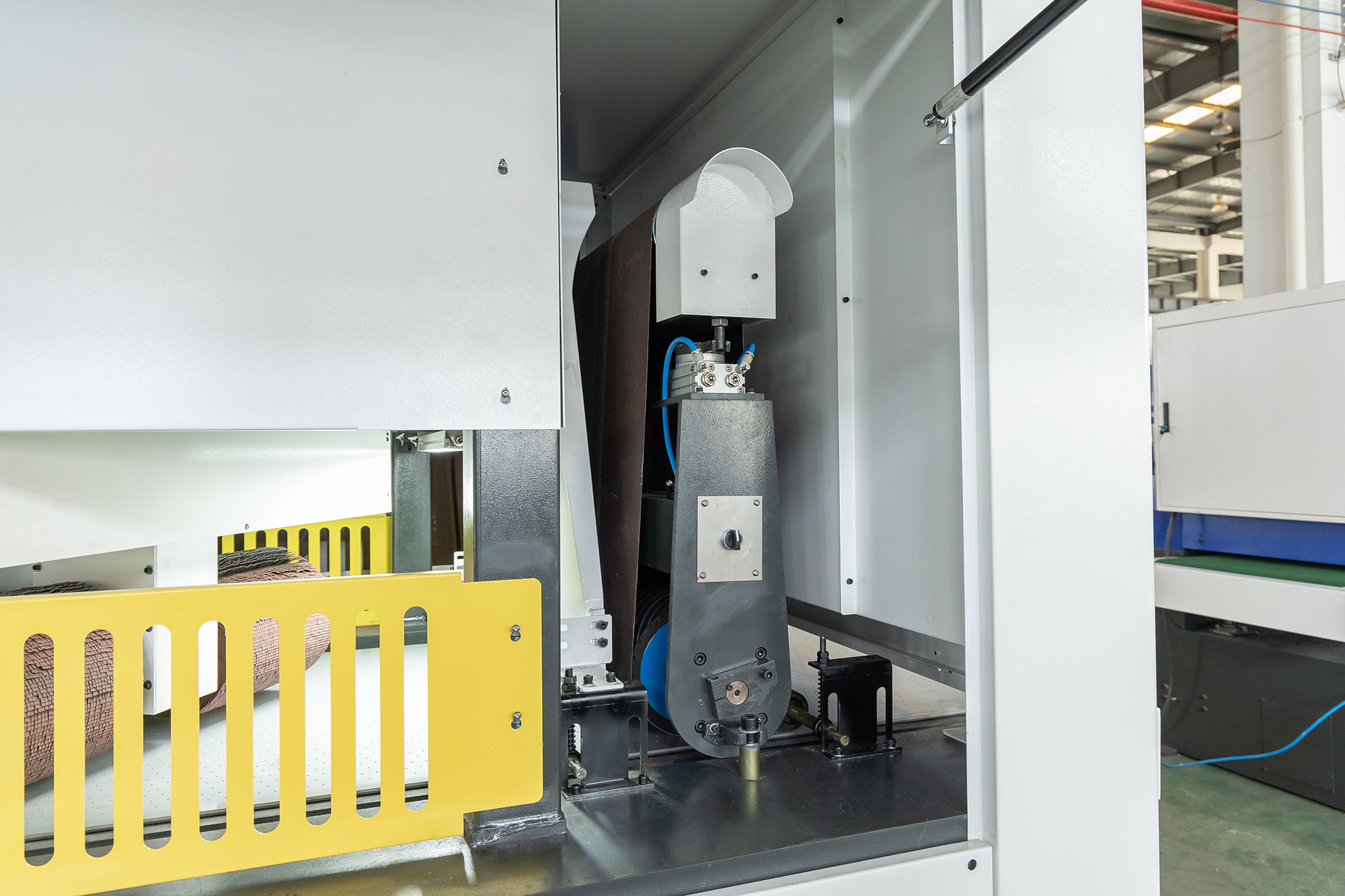

The abrasive belt rotates at high speed driven by the grinding roller, performing grinding operations on the workpiece surface while simultaneously deburring, brushing, and rounding edges.

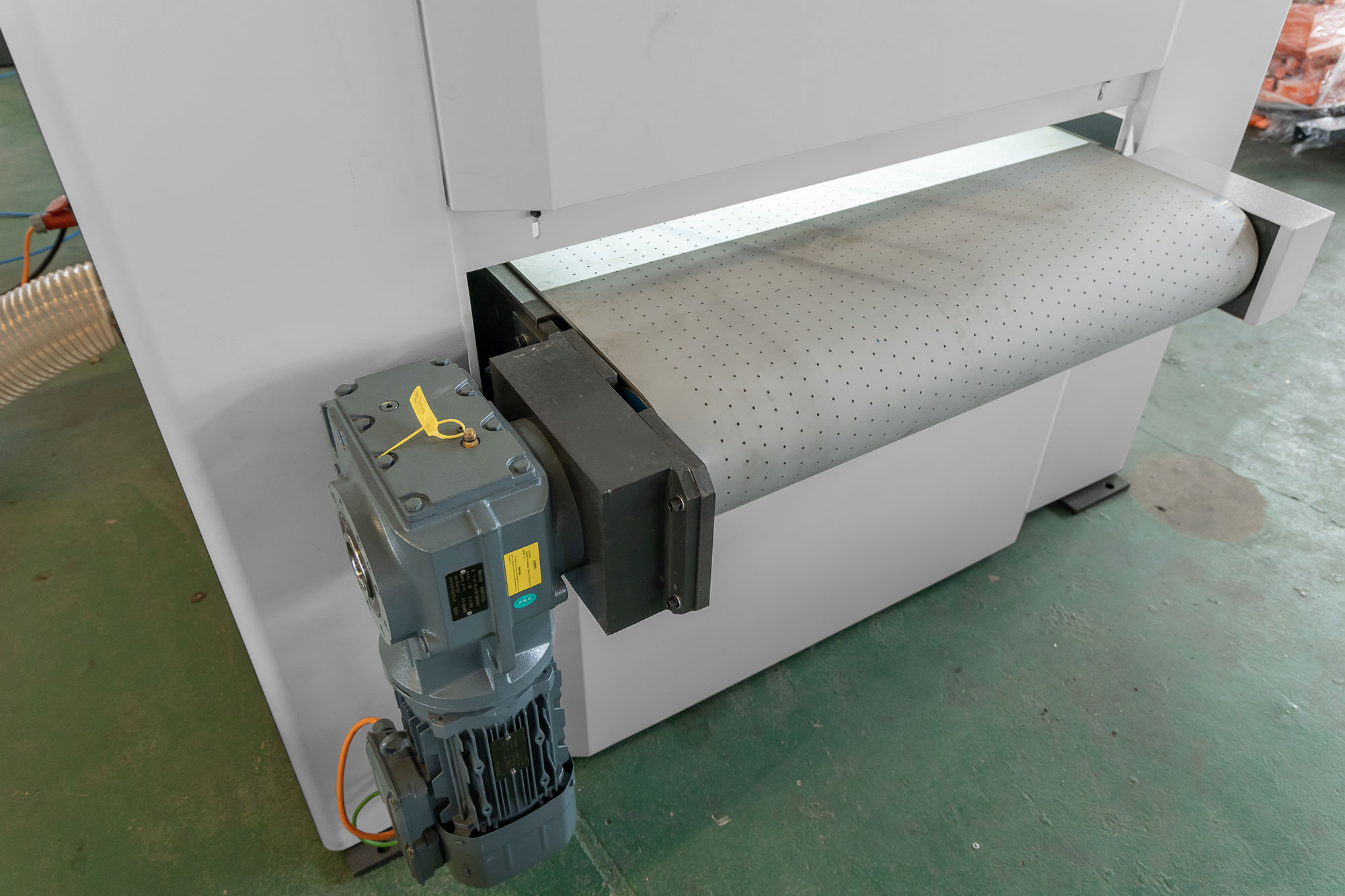

The vacuum suction conveying system is designed for non-magnetic materials like stainless steel, copper, and aluminum plates (≥50mm × 50mm). It features an adsorption workbench and a vacuum pump, delivering strong suction for small components and handling various material sizes, while greatly reducing energy consumption.

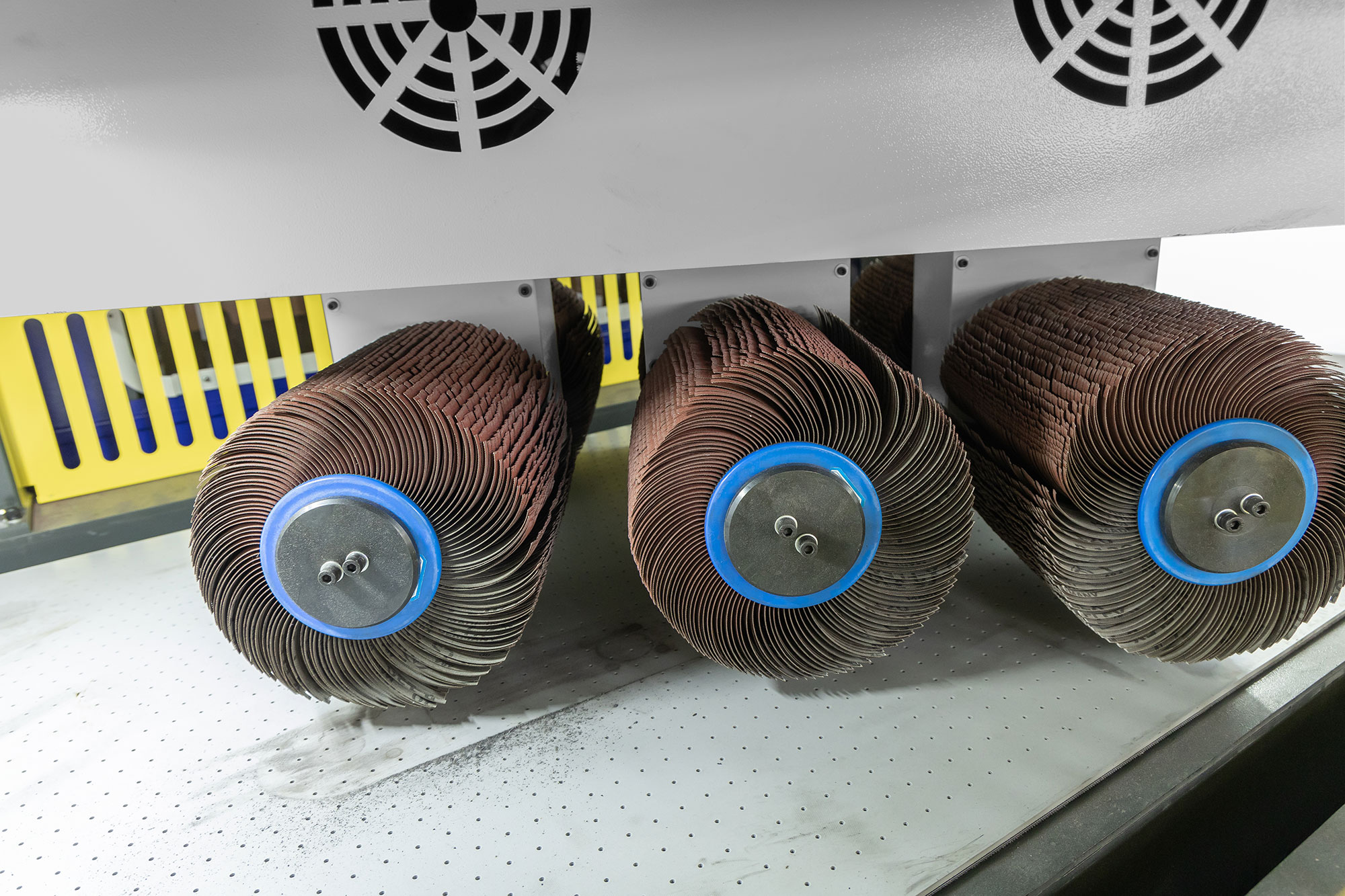

Four or six sets of roller brushes, with adjacent pairs rotating in opposite directions, ensure thorough contact of abrasive particles with every surface of the product, delivering superior processing results. This configuration is used to remove burrs from workpiece edges and achieve smooth edges.

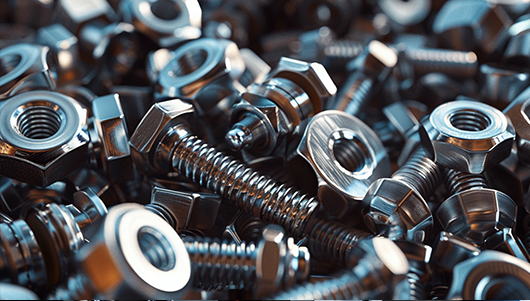

Deburring machines are commonly used in industries such as automotive, aerospace, hardware manufacturing, furniture production, and metalworking. These machines are essential for removing burrs, sharp edges, and residues from metal parts, ensuring smoother surfaces, enhanced product quality, and improved safety.
